Section 3.5
Examples and Notes
code/example-3-5-1.rkt
#lang sicp
;; Library functions
(define (accumulate op initial sequence)
(if (null? sequence)
initial
(op (car sequence)
(accumulate op
initial
(cdr sequence)))))
(define (filter predicate sequence)
(cond ((null? sequence) nil)
((predicate (car sequence))
(cons (car sequence)
(filter predicate
(cdr sequence))))
(else (filter predicate
(cdr sequence)))))
(define (smallest-divisor n)
(find-divisor n 2))
(define (square n) (* n n))
(define (find-divisor n test-divisor)
(cond ((> (square test-divisor) n)
n)
((divides? test-divisor n)
test-divisor)
(else (find-divisor
n
(+ test-divisor 1)))))
(define (divides? a b)
(= (remainder b a) 0))
(define (prime? n)
(= n (smallest-divisor n)))
(define (enumerate-interval low high)
(if (> low high)
nil
(cons low
(enumerate-interval
(+ low 1)
high))))
(define (sum-primes-1 a b)
(define (iter count accum)
(cond ((> count b) accum)
((prime? count)
(iter (+ count 1)
(+ count accum)))
(else (iter (+ count 1) accum))))
(iter a 0))
(define (sum-primes-2 a b)
(accumulate
+
0
(filter prime? (enumerate-interval a b))))
(sum-primes-1 1 1000)
(sum-primes-2 1 1000)
76128 76128
#lang sicp
(define str (cons 1 (delay 2)))
(car str)
(force (cdr str))
;; This gives an error:
;; ((cdr str))
(define (stream-car stream)
(car stream))
(define (stream-cdr stream)
(force (cdr stream)))
(stream-car (cons-stream 1 2))
(stream-cdr (cons-stream 1 2))
1 2 1 2
#lang sicp
(define (stream-car stream)
(car stream))
(define (stream-cdr stream)
(force (cdr stream)))
(define (stream-enumerate-interval low high)
(if (> low high)
the-empty-stream
(cons-stream
low
(stream-enumerate-interval (+ low 1)
high))))
(define (stream-enumerate-odds low high)
(cond ((> low high) the-empty-stream)
((= (remainder low 2) 0)
(stream-enumerate-interval (+ low 1) high))
(else
(cons-stream
low
(stream-enumerate-interval (+ low 2)
high)))))
(define (stream-enumerate-evens low high)
(cond ((> low high) the-empty-stream)
((= (remainder low 2) 1)
(stream-enumerate-interval (+ low 1) high))
(else
(cons-stream
low
(stream-enumerate-interval (+ low 2)
high)))))
(define (stream-for-each proc s)
(if (stream-null? s)
'done
(begin
(proc (stream-car s))
(stream-for-each proc
(stream-cdr s)))))
(define (display-stream s)
(stream-for-each display-line s))
(define (display-line x)
(newline)
(display x))
(display-stream (stream-enumerate-interval 1 6))
(define (stream-ref s n)
(if (= n 0)
(stream-car s)
(stream-ref (stream-cdr s) (- n 1))))
(define (stream-map proc s)
(if (stream-null? s)
the-empty-stream
(cons-stream
(proc (stream-car s))
(stream-map proc (stream-cdr s)))))
;; (stream-car
;; (stream-cdr
;; (stream-filter
;; prime? (stream-enumerate-interval
;; 10000 1000000))))
(define (stream-filter pred stream)
(cond ((stream-null? stream)
the-empty-stream)
((pred (stream-car stream))
(cons-stream
(stream-car stream)
(stream-filter
pred
(stream-cdr stream))))
(else (stream-filter
pred
(stream-cdr stream)))))
(define (stream-map proc . argstreams)
(if (⟨??⟩ (car argstreams))
the-empty-stream
(⟨??⟩
(apply proc (map ⟨??⟩ argstreams))
(apply stream-map
(cons proc
(map ⟨??⟩
argstreams))))))
Error (exit code 1): src/ch3/code/example-3-5-3.rkt:85:9: module: identifier already defined at: stream-map in: (define-values (stream-map) (r5rs:lambda (proc . argstreams) (if (⟨??⟩ (car argstreams)) the-empty-stream (⟨??⟩ (apply proc (map ⟨??⟩ argstreams)) (apply stream-map (cons proc (map ⟨??⟩ argstreams))))))) location...: src/ch3/code/example-3-5-3.rkt:85:9
Note to self: I had a half-thought-out concern about the caching. In the solution to 3.55:
(define (partial-sums s)
(cons-stream 0
(add-streams s (partial-sums s))))
I'd be concerned that if (partial-sums s) created a new stream with new
cached values at every step, that we wouldn't get the additive behavior we want?
Does this make any sense? Can I replicate and understand this with just lambdas?
Exercises
Exercise 3.50
Complete the following
definition, which generalizes stream-map to allow procedures that take
multiple arguments, analogous to map in 2.2.1,
Footnote 78.
(define (stream-map proc . argstreams)
(if (⟨??⟩ (car argstreams))
the-empty-stream
(⟨??⟩
(apply proc (map ⟨??⟩ argstreams))
(apply stream-map
(cons proc
(map ⟨??⟩
argstreams))))))
Solution
(define (stream-map proc . argstreams)
(if (stream-null? (car argstreams))
the-empty-stream
(cons-stream
(apply proc (map stream-car argstreams))
(apply stream-map (cons proc (map stream-cdr argstreams))))))
;; Enumerate every other triangular number
;; ie every other entry from the sequence
;; 1, 3, 6, 10, 15, 21, 28, 36, 45, 55, ... n*(n+1)/2
(display-stream
(stream-map
*
(stream-enumerate-evens 1 10)
(stream-enumerate-odds 1 10)
(stream-enumerate-constant 1/2 5)))
code/ex3-50.rkt
#lang sicp
(define (stream-car stream)
(car stream))
(define (stream-cdr stream)
(force (cdr stream)))
(define (stream-enumerate-interval low high)
(if (> low high)
the-empty-stream
(cons-stream
low
(stream-enumerate-interval (+ low 1)
high))))
(define (stream-enumerate-odds low high)
(cond ((> low high) the-empty-stream)
((= (remainder low 2) 0)
(stream-enumerate-odds (+ low 1) high))
(else
(cons-stream
low
(stream-enumerate-odds (+ low 2)
high)))))
(define (stream-enumerate-evens low high)
(cond ((> low high) the-empty-stream)
((= (remainder low 2) 1)
(stream-enumerate-evens (+ low 1) high))
(else
(cons-stream
low
(stream-enumerate-evens (+ low 2)
high)))))
(define (stream-enumerate-constant c n)
(if (= n 0)
the-empty-stream
(cons-stream
c
(stream-enumerate-constant c (- n 1)))))
(define (stream-for-each proc s)
(if (stream-null? s)
'done
(begin
(proc (stream-car s))
(stream-for-each proc
(stream-cdr s)))))
(define (display-stream s)
(stream-for-each display-line s))
(define (display-line x)
(newline)
(display x))
(define (stream-map proc . argstreams)
(if (stream-null? (car argstreams))
the-empty-stream
(cons-stream
(apply proc (map stream-car argstreams))
(apply stream-map (cons proc (map stream-cdr argstreams))))))
; (display-stream (stream-enumerate-evens 1 6))
; (display-stream (stream-enumerate-odds 1 6))
; (display-stream (stream-enumerate-constant 1/2 6))
(display-stream
(stream-map
*
(stream-enumerate-evens 1 10)
(stream-enumerate-odds 1 10)
(stream-enumerate-constant 1/2 5)))
1 6 15 28 45done
Note I wrote a really really bad definition of stream-map on a first pass!!!
The following definition has major issues because rest is evaluated immediately.
In fact it has to be inside cons-stream (where the second argument is delayed)
to avoid infinite recursion in scenarios like in problem 3.53.
;; bad awful definition of stream-map
(define (stream-map proc . argstreams)
(if (stream-null? (car argstreams))
the-empty-stream
(let ((args (map stream-car argstreams))
(rest (map stream-cdr argstreams)))
(cons-stream
(apply proc args)
(apply stream-map (cons proc rest))))))
Exercise 3.51
In order to take a closer look at delayed evaluation, we will use the following procedure, which simply returns its argument after printing it:
(define (show x)
(display-line x)
x)
What does the interpreter print in response to evaluating each expression in the following sequence?
(define x
(stream-map
show
(stream-enumerate-interval 0 10)))
(stream-ref x 5)
(stream-ref x 7)
Solution
Zero is printed right when we define x, because with our definitions the first element of the stream is computed right away.
(define (show x)
(display-line x)
x)
(define x
(stream-map
show
(stream-enumerate-interval 0 10)))
; 0
Next, we compute stream-ref, and we print the following, no surprises yet:
(stream-ref x 5)
; 1
; 2
; 3
; 4
; 5 <- from (newline) (display 5)
; 5 <- from the output of the function
When we print 7, we find that only the results for elements 6 and 7 are printed, because all other entries have been memoized.
(stream-ref x 7)
; 6
; 7 <- from (newline) (display 5)
; 7 <- from the output of the function
code/ex3-51.rkt
#lang sicp
(define (stream-car stream)
(car stream))
(define (stream-cdr stream)
(force (cdr stream)))
(define (stream-enumerate-interval low high)
(if (> low high)
the-empty-stream
(cons-stream
low
(stream-enumerate-interval (+ low 1)
high))))
(define (stream-enumerate-odds low high)
(cond ((> low high) the-empty-stream)
((= (remainder low 2) 0)
(stream-enumerate-odds (+ low 1) high))
(else
(cons-stream
low
(stream-enumerate-odds (+ low 2)
high)))))
(define (stream-enumerate-evens low high)
(cond ((> low high) the-empty-stream)
((= (remainder low 2) 1)
(stream-enumerate-evens (+ low 1) high))
(else
(cons-stream
low
(stream-enumerate-evens (+ low 2)
high)))))
(define (stream-enumerate-constant c n)
(if (= n 0)
the-empty-stream
(cons-stream
c
(stream-enumerate-constant c (- n 1)))))
(define (stream-for-each proc s)
(if (stream-null? s)
'done
(begin
(proc (stream-car s))
(stream-for-each proc
(stream-cdr s)))))
(define (display-stream s)
(stream-for-each display-line s))
(define (display-line x)
(newline)
(display x))
(define (stream-ref s n)
(if (= n 0)
(stream-car s)
(stream-ref (stream-cdr s) (- n 1))))
(define (stream-map proc . argstreams)
(if (stream-null? (car argstreams))
the-empty-stream
(cons-stream
(apply proc (map stream-car argstreams))
(apply stream-map (cons proc (map stream-cdr argstreams))))))
; (display-stream (stream-enumerate-evens 1 6))
; (display-stream (stream-enumerate-odds 1 6))
; (display-stream (stream-enumerate-constant 1/2 6))
(define (show x)
(display-line x)
x)
(define x
(stream-map
show
(stream-enumerate-interval 0 10)))
; 0
(stream-ref x 5)
; 1
; 2
; 3
; 4
; 5 <- from (newline) (display 5)
; 5 <- from the output of the function
(stream-ref x 7)
; 6
; 7 <- from (newline) (display 5)
; 7 <- from the output of the function
0 1 2 3 4 55 6 77
Exercise 3.52
Consider the sequence of expressions
(define sum 0)
(define (accum x)
(set! sum (+ x sum))
sum)
(define seq
(stream-map
accum
(stream-enumerate-interval 1 20)))
(define y (stream-filter even? seq))
(define z
(stream-filter
(lambda (x)
(= (remainder x 5) 0)) seq))
(stream-ref y 7)
(display-stream z)
What is the value of sum after each of the above expressions is
evaluated? What is the printed response to evaluating the stream-ref
and display-stream expressions? Would these responses differ if we had
implemented (delay ⟨exp⟩) simply as (lambda () ⟨exp⟩)
without using the optimization provided by memo-proc? Explain.
Solution
The evaluations would be very different if we didn't memoize. Each time we evaluate a term
using stream-cdr, we modify sum, and so if we wanted to regenerate the earlier portions of the list,
we'd have to reset sum to zero every time we did an operation.
With memoization we get the following:
(define sum 0)
(define (accum x)
(set! sum (+ x sum))
sum)
(define seq
(stream-map
accum
(stream-enumerate-interval 1 20)))
;; display stream would print:
;; 1, 3, 6, 10, 15, 21, 28, 36, 45, 55, 66, 78, 91, 105, 120, 136, 153, 171, 190, 210
(define y (stream-filter even? seq))
;; Evens: 6, 10, 28, 36, 66, 78, 120, 136, 190, 210
(define z
(stream-filter
(lambda (x)
(= (remainder x 5) 0)) seq))
;; Divisible by 5: 10, 15, 45, 55, 105, 120, 190, 210
(stream-ref y 7)
;; 136, the seventh even triangular number
(display-stream z)
;; Prints 10, 15, 45, 55, 105, 120, 190, 210
code/ex3-52.rkt
#lang sicp
(define (stream-car stream)
(car stream))
(define (stream-cdr stream)
(force (cdr stream)))
(define (stream-enumerate-interval low high)
(if (> low high)
the-empty-stream
(cons-stream
low
(stream-enumerate-interval (+ low 1)
high))))
(define (stream-for-each proc s)
(if (stream-null? s)
'done
(begin
(proc (stream-car s))
(stream-for-each proc
(stream-cdr s)))))
(define (display-stream s)
(stream-for-each display-line s))
(define (display-line x)
(newline)
(display x))
(define (stream-ref s n)
(if (= n 0)
(stream-car s)
(stream-ref (stream-cdr s) (- n 1))))
(define (stream-map proc . argstreams)
(if (stream-null? (car argstreams))
the-empty-stream
(cons-stream
(apply proc (map stream-car argstreams))
(apply stream-map (cons proc (map stream-cdr argstreams))))))
(define (stream-filter pred stream)
(cond ((stream-null? stream)
the-empty-stream)
((pred (stream-car stream))
(cons-stream
(stream-car stream)
(stream-filter
pred
(stream-cdr stream))))
(else (stream-filter
pred
(stream-cdr stream)))))
(define sum 0)
(define (accum x)
(set! sum (+ x sum))
sum)
(define seq
(stream-map
accum
(stream-enumerate-interval 1 20)))
;; 1, 3, 6, 10, 15, 21, 28, 36, 45, 55, 66, 78, 91, 105, 120, 136, 153, 171, 190, 210
(define y (stream-filter even? seq))
;; Evens: 6, 10, 28, 36, 66, 78, 120, 136, 190, 210
(define z
(stream-filter
(lambda (x)
(= (remainder x 5) 0)) seq))
;; Divisible by 5: 10, 15, 45, 55, 105, 120, 190, 210
(stream-ref y 7)
;; 136, the seventh even triangular number
(display-stream z)
;; Prints 10, 15, 45, 55, 105, 120, 190, 210
136 10 15 45 55 105 120 190 210done
Exercise 3.53
Without running the program, describe the elements of the stream defined by
(define s (cons-stream 1 (add-streams s s)))
Solution
stream-car of s trivially runs fine and returns 1.
The interesting stuff is when we call
stream-cdr. We do force to evaluate add-streams, this looks something like
(add-streams
(cons-stream 1 (add-streams s s))
(cons-stream 1 (add-streams s s)))
We create a new stream which looks like this:
(cons-stream
(+ 1 1)
(add-streams
(add-streams s s)
(add-streams s s)))
We might expect this to give an infinite recursion, but in fact the second argument is delayed, and so doesn't evaluate. (if it evaluated, we'd be in trouble.)
Double checking by evaluating:
code/ex3-53.rkt
#lang sicp
(define (stream-car stream)
(car stream))
(define (stream-cdr stream)
(force (cdr stream)))
(define (display-line x)
(newline)
(display x))
(define (stream-ref s n)
(if (= n 0)
(stream-car s)
(stream-ref (stream-cdr s) (- n 1))))
(define (stream-map proc . argstreams)
(if (stream-null? (car argstreams))
the-empty-stream
(cons-stream
(apply proc (map stream-car argstreams))
(apply stream-map (cons proc (map stream-cdr argstreams))))))
(define (add-streams s1 s2)
(stream-map + s1 s2))
(define s (cons-stream 1 (add-streams s s)))
(display-line (stream-ref s 0))
(display-line (stream-ref s 1))
(display-line (stream-ref s 2))
(display-line (stream-ref s 3))
(display-line (stream-ref s 4))
(display-line (stream-ref s 5))
1 2 4 8 16 32
Exercise 3.54
Define a procedure
mul-streams, analogous to add-streams, that produces the
elementwise product of its two input streams. Use this together with the
stream of integers to complete the following definition of the stream
whose $n^{\text{th}}$ element (counting from 0) is $n + 1$ factorial:
(define factorials
(cons-stream 1 (mul-streams ⟨??⟩ ⟨??⟩)))
Solution
(define (mul-streams s1 s2)
(stream-map * s1 s2))
(define factorials
(cons-stream 1 (mul-streams integers factorials)))
code/ex3-54.rkt
#lang sicp
(define (stream-car stream)
(car stream))
(define (stream-cdr stream)
(force (cdr stream)))
(define (stream-enumerate-interval low high)
(if (> low high)
the-empty-stream
(cons-stream
low
(stream-enumerate-interval (+ low 1)
high))))
(define (stream-enumerate-odds low high)
(cond ((> low high) the-empty-stream)
((= (remainder low 2) 0)
(stream-enumerate-interval (+ low 1) high))
(else
(cons-stream
low
(stream-enumerate-interval (+ low 2)
high)))))
(define (stream-enumerate-evens low high)
(cond ((> low high) the-empty-stream)
((= (remainder low 2) 1)
(stream-enumerate-interval (+ low 1) high))
(else
(cons-stream
low
(stream-enumerate-interval (+ low 2)
high)))))
(define (stream-for-each proc s)
(if (stream-null? s)
'done
(begin
(proc (stream-car s))
(stream-for-each proc
(stream-cdr s)))))
(define (display-stream s)
(stream-for-each display-line s))
(define (display-stream-first-n s n)
(if (and (not (stream-null? s)) (> n 0))
(begin
(display-line (stream-car s))
(display-stream-first-n (stream-cdr s) (- n 1)))))
(define (display-line x)
(newline)
(display x))
(define (stream-ref s n)
(if (= n 0)
(stream-car s)
(stream-ref (stream-cdr s) (- n 1))))
(define (stream-map proc . argstreams)
(if (stream-null? (car argstreams))
the-empty-stream
(cons-stream
(apply proc (map stream-car argstreams))
(apply stream-map (cons proc (map stream-cdr argstreams))))))
(define (stream-filter pred stream)
(cond ((stream-null? stream)
the-empty-stream)
((pred (stream-car stream))
(cons-stream
(stream-car stream)
(stream-filter
pred
(stream-cdr stream))))
(else (stream-filter
pred
(stream-cdr stream)))))
(define (add-streams s1 s2)
(stream-map + s1 s2))
(define (mul-streams s1 s2)
(stream-map * s1 s2))
(define (integers-starting-from n)
(cons-stream
n (integers-starting-from (+ n 1))))
(define integers (integers-starting-from 1))
(define factorials
(cons-stream 1 (mul-streams integers factorials)))
(display-stream-first-n factorials 10)
1 1 2 6 24 120 720 5040 40320 362880
Exercise 3.55
Define a procedure
partial-sums that takes as argument a stream $S$ and returns the
stream whose elements are $S_0$, $S_0 + S_1$, $S_0 + S_1 + S_2, \dots $.
For example, (partial-sums integers) should be the
stream 1, 3, 6, 10, 15, $\ldots$.
Solution
(define (partial-sums s)
(cons-stream 0
(add-streams s (partial-sums s))))
code/ex3-55.rkt
#lang sicp
(define (stream-car stream)
(car stream))
(define (stream-cdr stream)
(force (cdr stream)))
(define (stream-enumerate-interval low high)
(if (> low high)
the-empty-stream
(cons-stream
low
(stream-enumerate-interval (+ low 1)
high))))
(define (stream-enumerate-odds low high)
(cond ((> low high) the-empty-stream)
((= (remainder low 2) 0)
(stream-enumerate-interval (+ low 1) high))
(else
(cons-stream
low
(stream-enumerate-interval (+ low 2)
high)))))
(define (stream-enumerate-evens low high)
(cond ((> low high) the-empty-stream)
((= (remainder low 2) 1)
(stream-enumerate-interval (+ low 1) high))
(else
(cons-stream
low
(stream-enumerate-interval (+ low 2)
high)))))
(define (stream-for-each proc s)
(if (stream-null? s)
'done
(begin
(proc (stream-car s))
(stream-for-each proc
(stream-cdr s)))))
(define (display-stream s)
(stream-for-each display-line s))
(define (display-stream-first-n s n)
(if (and (not (stream-null? s)) (> n 0))
(begin
(display-line (stream-car s))
(display-stream-first-n (stream-cdr s) (- n 1)))))
(define (display-line x)
(newline)
(display x))
(define (stream-ref s n)
(if (= n 0)
(stream-car s)
(stream-ref (stream-cdr s) (- n 1))))
(define (stream-map proc . argstreams)
(if (stream-null? (car argstreams))
the-empty-stream
(cons-stream
(apply proc (map stream-car argstreams))
(apply stream-map (cons proc (map stream-cdr argstreams))))))
(define (stream-filter pred stream)
(cond ((stream-null? stream)
the-empty-stream)
((pred (stream-car stream))
(cons-stream
(stream-car stream)
(stream-filter
pred
(stream-cdr stream))))
(else (stream-filter
pred
(stream-cdr stream)))))
(define (add-streams s1 s2)
(stream-map + s1 s2))
(define (mul-streams s1 s2)
(stream-map * s1 s2))
(define (integers-starting-from n)
(cons-stream
n (integers-starting-from (+ n 1))))
(define integers (integers-starting-from 1))
(define (partial-sums s)
(cons-stream 0
(add-streams s (partial-sums s))))
(display-stream-first-n (partial-sums integers) 10)
0 1 3 6 10 15 21 28 36 45
Exercise 3.56
A famous problem, first raised by
R. Hamming, is to enumerate, in ascending order with no repetitions, all
positive integers with no prime factors other than 2, 3, or 5. One obvious way
to do this is to simply test each integer in turn to see whether it has any
factors other than 2, 3, and 5. But this is very inefficient, since, as the
integers get larger, fewer and fewer of them fit the requirement. As an
alternative, let us call the required stream of numbers S and notice the
following facts about it.
@itemize @bullet
@item
S begins with 1.
@item
The elements of (scale-stream S 2) are also
elements of S.
@item
The same is true for (scale-stream S 3)
and (scale-stream S 5).
@item
These are all the elements of S.
Now all we have to do is combine elements from these sources. For this we
define a procedure merge that combines two ordered streams into one
ordered result stream, eliminating repetitions:
(define (merge s1 s2)
(cond ((stream-null? s1) s2)
((stream-null? s2) s1)
(else
(let ((s1car (stream-car s1))
(s2car (stream-car s2)))
(cond ((< s1car s2car)
(cons-stream
s1car
(merge (stream-cdr s1)
s2)))
((> s1car s2car)
(cons-stream
s2car
(merge s1
(stream-cdr s2))))
(else
(cons-stream
s1car
(merge
(stream-cdr s1)
(stream-cdr s2)))))))))
Then the required stream may be constructed with merge, as follows:
(define S (cons-stream 1 (merge ⟨??⟩ ⟨??⟩)))
Fill in the missing expressions in the places marked ⟨??⟩ above.
Solution
Exercise 3.57
How many additions are performed
when we compute the $n^{\text{th}}$ Fibonacci number using the definition of
fibs based on the add-streams procedure? Show that the number of
additions would be exponentially greater if we had implemented (delay ⟨@var{exp}⟩)
simply as (lambda () ⟨@var{exp}⟩), without using the
optimization provided by the memo-proc procedure described in
3.5.1.
Solution
Exercise 3.58
Give an interpretation of the stream computed by the following procedure:
(define (expand num den radix)
(cons-stream
(quotient (* num radix) den)
(expand (remainder (* num radix) den)
den
radix)))
(Quotient is a primitive that returns the integer quotient of two
integers.) What are the successive elements produced by (expand 1 7
10)? What is produced by (expand 3 8 10)?
Solution
Exercise 3.59
In 2.5.3 we saw how to implement a polynomial arithmetic system representing polynomials as lists of terms. In a similar way, we can work with power series, such as
$$\begin{eqnarray} e^x &=& 1 + x + \frac{1}{2} x^2 + \frac{1}{3 \cdot 2} x^3 + \frac{1}{4 \cdot 3 \cdot 2} x^4 + \dots, \ \cos x &=& 1 - \frac{1}{2} x^2 + \frac{1}{4 \cdot 3 \cdot 2} x^4 - \dots, \ \sin x &=& x - \frac{1}{3 \cdot 2} x^3 + \frac{1}{5 \cdot 4 \cdot 3 \cdot 2} x^5 - \dots \end{eqnarray} $$
represented as infinite streams. We will represent the series ${a_0 + a_1 x$ + {a_2 x^2} + {a_3 x^3 + \dots}} as the stream whose elements are the coefficients $a_0$, $a_1$, $a_2$, $a_3$, @dots{}.
1. The integral of the series ${a_0 + a_1 x$ + {a_2 x^2} + {a_3 x^3 + \dots}} is the series
$$c + {a_0 x} + {\frac{1}{2} a_1 x^2} + {\frac{1}{3} a_2 x^3} + {\frac{1}{4} a_3 x^4 + \dots,} $$
where $c$ is any constant. Define a procedure integrate-series that
takes as input a stream $a_0$, $a_1$, $a_2$, @dots{} representing a power
series and returns the stream $a_0$, ${{1\over2}a_1$}, ${{1\over3}a_2$}, @dots{} of
coefficients of the non-constant terms of the integral of the series. (Since
the result has no constant term, it doesn't represent a power series; when we
use integrate-series, we will cons on the appropriate constant.)
2. The function ${x \mapsto e^x$} is its own derivative. This implies that $e^x$ and the integral of $e^x$ are the same series, except for the constant term, which is ${e^0 = 1$}. Accordingly, we can generate the series for $e^x$ as
(define exp-series
(cons-stream
1 (integrate-series exp-series)))
Show how to generate the series for sine and cosine, starting from the facts that the derivative of sine is cosine and the derivative of cosine is the negative of sine:
(define cosine-series
(cons-stream 1 ⟨??⟩))
(define sine-series
(cons-stream 0 ⟨??⟩))
Solution
Exercise 3.60
With power series represented as
streams of coefficients as in Exercise 3.59, adding series is implemented
by add-streams. Complete the definition of the following procedure for
multiplying series:
(define (mul-series s1 s2)
(cons-stream ⟨??⟩ (add-streams ⟨??⟩ ⟨??⟩)))
You can test your procedure by verifying that ${\sin^2x + \cos^2x = 1,$} using the series from Exercise 3.59.
Solution
Exercise 3.61
Let $S$ be a power series (Exercise 3.59) whose constant term is 1. Suppose we want to find the power series ${1 / S$}, that is, the series $X$ such that ${SX = 1$}. Write ${S = 1 + S_R$} where $S_R$ is the part of $S$ after the constant term. Then we can solve for $X$ as follows:
$$\begin{eqnarray} S \cdot X &=& 1, \ (1 + S_R) \cdot X &=& 1, \ X + S_R \cdot X &=& 1, \ X &=& 1 - S_R \cdot X. \end{eqnarray} $$
In other words, $X$ is the power series whose constant term is 1 and whose
higher-order terms are given by the negative of $S_R$ times $X$. Use
this idea to write a procedure invert-unit-series that computes ${1 / S$}
for a power series $S$ with constant term 1. You will need to use
mul-series from Exercise 3.60.
Solution
Exercise 3.62
Use the results of Exercise 3.60
and Exercise 3.61 to define a procedure div-series that
divides two power series. Div-series should work for any two series,
provided that the denominator series begins with a nonzero constant term. (If
the denominator has a zero constant term, then div-series should signal
an error.) Show how to use div-series together with the result of
Exercise 3.59 to generate the power series for tangent.
Solution
Exercise 3.63
Louis Reasoner asks why the
sqrt-stream procedure was not written in the following more
straightforward way, without the local variable guesses:
(define (sqrt-stream x)
(cons-stream
1.0
(stream-map (lambda (guess)
(sqrt-improve guess x))
(sqrt-stream x))))
Alyssa P. Hacker replies that this version of the procedure is considerably
less efficient because it performs redundant computation. Explain Alyssa's
answer. Would the two versions still differ in efficiency if our
implementation of delay used only (lambda () ⟨@var{exp}⟩) without
using the optimization provided by memo-proc (3.5.1)?
Solution
Exercise 3.64
Write a procedure
stream-limit that takes as arguments a stream and a number (the
tolerance). It should examine the stream until it finds two successive
elements that differ in absolute value by less than the tolerance, and return
the second of the two elements. Using this, we could compute square roots up
to a given tolerance by
(define (sqrt x tolerance)
(stream-limit (sqrt-stream x) tolerance))
Solution
Exercise 3.65
Use the series
$$\ln 2 \,=\, 1 - {1\over2} + {1\over3} - {1\over4} + \dots $$
to compute three sequences of approximations to the natural logarithm of 2, in the same way we did above for $\pi$. How rapidly do these sequences converge?
Solution
Exercise 3.66
Examine the stream (pairs
integers integers). Can you make any general comments about the order in which
the pairs are placed into the stream? For example, approximately how many pairs precede
the pair (1, 100)? the pair (99, 100)? the pair (100, 100)? (If you can make
precise mathematical statements here, all the better. But feel free to give
more qualitative answers if you find yourself getting bogged down.)
Solution
Exercise 3.67
Modify the pairs procedure
so that (pairs integers integers) will produce the stream of all
pairs of integers ${(i, j)$} (without the condition ${i \le j$}). Hint:
You will need to mix in an additional stream.
Solution
Exercise 3.68
Louis Reasoner thinks that building a stream of pairs from three parts is unnecessarily complicated. Instead of separating the pair ${(S_0, T_0)$} from the rest of the pairs in the first row, he proposes to work with the whole first row, as follows:
(define (pairs s t)
(interleave
(stream-map
(lambda (x)
(list (stream-car s) x))
t)
(pairs (stream-cdr s)
(stream-cdr t))))
Does this work? Consider what happens if we evaluate (pairs integers
integers) using Louis's definition of pairs.
Solution

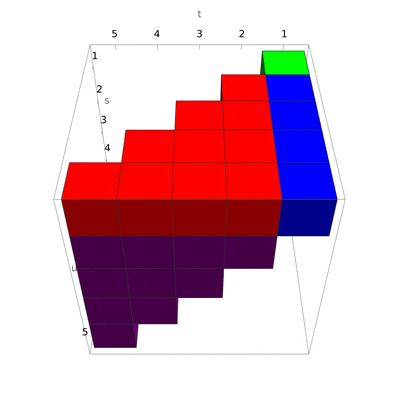

Exercise 3.69
Write a procedure triples
that takes three infinite streams, $S$, $T$, and $U$, and produces the
stream of triples ${(S_i, T_j, U_k)$} such that ${i \le j \le k$}.
Use triples to generate the stream of all Pythagorean
triples of positive integers, i.e., the triples ${(i, j, k)$} such that
${i \le j$} and ${i^2 + j^2 = k^2$}.
Solution
Exercise 3.70
It would be nice to be able to
generate streams in which the pairs appear in some useful order, rather than in
the order that results from an ad hoc interleaving process. We can use
a technique similar to the merge procedure of Exercise 3.56, if we
define a way to say that one pair of integers is less than'' another. One
way to do this is to define aweighting function'' ${W(i, j)$} and
stipulate that ${(i_1, j_1)$} is less than ${(i_2, j_2)$} if
${W(i_1, j_1) \lt$ {W(i_2, j_2)}}. Write a procedure
merge-weighted that is like merge, except that
merge-weighted takes an additional argument weight, which is a
procedure that computes the weight of a pair, and is used to determine the
order in which elements should appear in the resulting merged
stream. Using this, generalize pairs to a procedure
weighted-pairs that takes two streams, together with a procedure that
computes a weighting function, and generates the stream of pairs, ordered
according to weight. Use your procedure to generate
1. the stream of all pairs of positive integers ${(i, j)$} with ${i \le j$} ordered according to the sum ${i + j$},
2. the stream of all pairs of positive integers ${(i, j)$} with ${i \le j$}, where neither $i$ nor $j$ is divisible by 2, 3, or 5, and the pairs are ordered according to the sum ${2i + 3j + 5ij$}.
Solution
Exercise 3.71
Numbers that can be expressed as the sum of two cubes in more than one way are sometimes called Ramanujan numbers, in honor of the mathematician Srinivasa Ramanujan. Ordered streams of pairs provide an elegant solution to the problem of computing these numbers. To find a number that can be written as the sum of two cubes in two different ways, we need only generate the stream of pairs of integers ${(i, j)$} weighted according to the sum ${i^3 + j^3$} (see Exercise 3.70), then search the stream for two consecutive pairs with the same weight. Write a procedure to generate the Ramanujan numbers. The first such number is 1,729. What are the next five?
Solution
Exercise 3.72
In a similar way to Exercise 3.71 generate a stream of all numbers that can be written as the sum of two squares in three different ways (showing how they can be so written).
Solution
Exercise 3.73

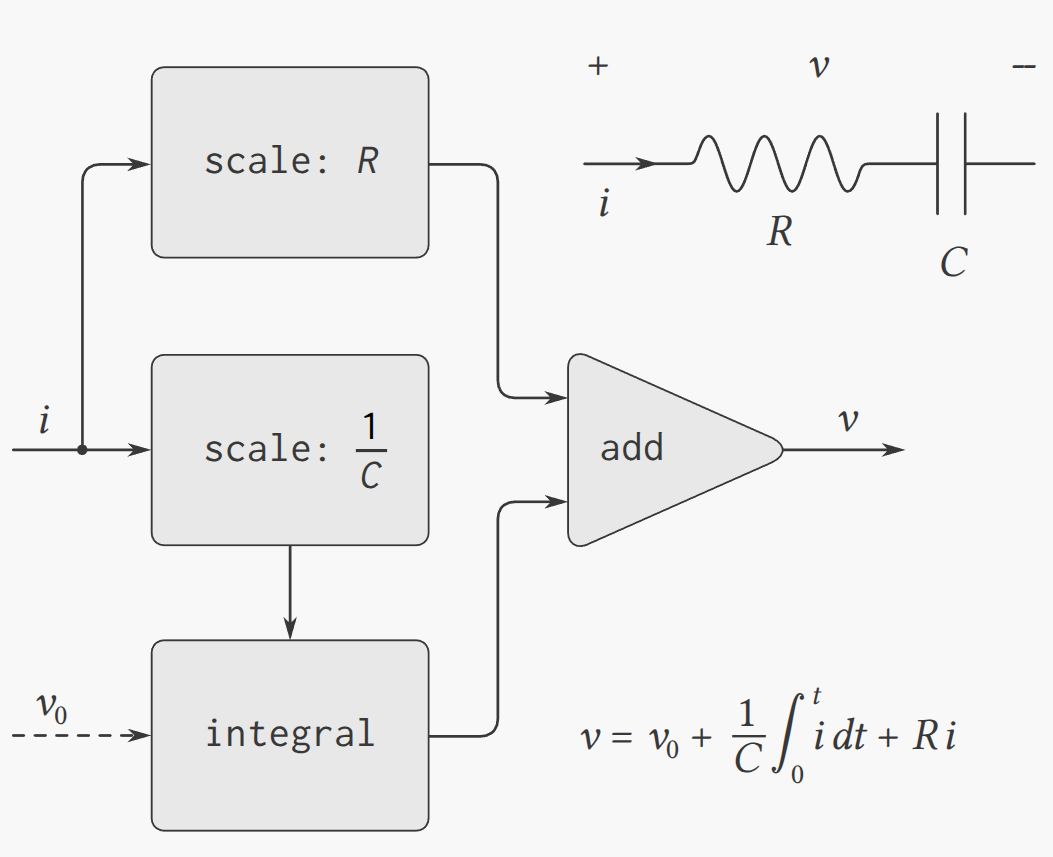

We can model electrical circuits using streams to represent the values of currents or voltages at a sequence of times. For instance, suppose we have an RC circuit consisting of a resistor of resistance $R$ and a capacitor of capacitance $C$ in series. The voltage response $v$ of the circuit to an injected current $i$ is determined by the formula in Figure 3.33, whose structure is shown by the accompanying signal-flow diagram.
@float @anchor{Figure 3.33}
@iftex
@caption{@strong{Figure 3.33:} An RC circuit and the associated signal-flow diagram.}
Write a procedure RC that models this circuit. RC should take as
inputs the values of $R$, $C$, and ${dt$} and should return a procedure
that takes as inputs a stream representing the current $i$ and an initial
value for the capacitor voltage $v_0$ and produces as output the stream of
voltages $v$. For example, you should be able to use RC to model an
RC circuit with $R$ = 5 ohms, $C$ = 1 farad, and a 0.5-second time step by
evaluating (define RC1 (RC 5 1 0.5)). This defines RC1 as a
procedure that takes a stream representing the time sequence of currents and an
initial capacitor voltage and produces the output stream of voltages.
Solution
Exercise 3.74
Alyssa P. Hacker is designing a system to process signals coming from physical sensors. One important feature she wishes to produce is a signal that describes the zero crossings of the input signal. That is, the resulting signal should be ${+1$} whenever the input signal changes from negative to positive, ${-1$} whenever the input signal changes from positive to negative, and $0$ otherwise. (Assume that the sign of a $0$ input is positive.) For example, a typical input signal with its associated zero-crossing signal would be
@r{…} 1 2 1.5 1 0.5 -0.1 -2 -3 -2 -0.5 0.2 3 4 @r{…}
@r{…} 0 0 0 0 0 -1 0 0 0 0 1 0 0 @r{…}
In Alyssa's system, the signal from the sensor is represented as a stream
sense-data and the stream zero-crossings is the corresponding
stream of zero crossings. Alyssa first writes a procedure
sign-change-detector that takes two values as arguments and compares the
signs of the values to produce an appropriate $0$, $1$, or ${-1$}. She then
constructs her zero-crossing stream as follows:
(define (make-zero-crossings
input-stream last-value)
(cons-stream
(sign-change-detector
(stream-car input-stream)
last-value)
(make-zero-crossings
(stream-cdr input-stream)
(stream-car input-stream))))
(define zero-crossings
(make-zero-crossings sense-data 0))
Alyssa's boss, Eva Lu Ator, walks by and suggests that this program is
approximately equivalent to the following one, which uses the generalized
version of stream-map from Exercise 3.50:
(define zero-crossings
(stream-map sign-change-detector
sense-data
⟨@var{expression}⟩))
Complete the program by supplying the indicated ⟨@var{expression}⟩.
Solution
Exercise 3.75
Unfortunately, Alyssa's zero-crossing detector in Exercise 3.74 proves to be insufficient, because the noisy signal from the sensor leads to spurious zero crossings. Lem E. Tweakit, a hardware specialist, suggests that Alyssa smooth the signal to filter out the noise before extracting the zero crossings. Alyssa takes his advice and decides to extract the zero crossings from the signal constructed by averaging each value of the sense data with the previous value. She explains the problem to her assistant, Louis Reasoner, who attempts to implement the idea, altering Alyssa's program as follows:
(define (make-zero-crossings
input-stream last-value)
(let ((avpt
(/ (+ (stream-car input-stream)
last-value)
2)))
(cons-stream
(sign-change-detector avpt last-value)
(make-zero-crossings
(stream-cdr input-stream) avpt))))
This does not correctly implement Alyssa's plan. Find the bug that Louis has
installed and fix it without changing the structure of the program. (Hint: You
will need to increase the number of arguments to make-zero-crossings.)
Solution
Exercise 3.76
Eva Lu Ator has a criticism of
Louis's approach in Exercise 3.75. The program he wrote is not modular,
because it intermixes the operation of smoothing with the zero-crossing
extraction. For example, the extractor should not have to be changed if Alyssa
finds a better way to condition her input signal. Help Louis by writing a
procedure smooth that takes a stream as input and produces a stream in
which each element is the average of two successive input stream elements.
Then use smooth as a component to implement the zero-crossing detector
in a more modular style.
Solution
Exercise 3.77
The integral procedure
used above was analogous to the `implicit'' definition of the infinite stream
of integers in 3.5.2. Alternatively, we can give a definition ofintegralthat is more likeintegers-starting-from` (also in
3.5.2):
(define (integral
integrand initial-value dt)
(cons-stream
initial-value
(if (stream-null? integrand)
the-empty-stream
(integral
(stream-cdr integrand)
(+ (* dt (stream-car integrand))
initial-value)
dt))))
When used in systems with loops, this procedure has the same problem as does
our original version of integral. Modify the procedure so that it
expects the integrand as a delayed argument and hence can be used in the
solve procedure shown above.
Solution
Exercise 3.78
Consider the problem of designing a signal-processing system to study the homogeneous second-order linear differential equation
$$\frac{d^2 y}{dt^2} - {a \frac{dy}{dt}} - {by} \,=\, {0.} $$
The output stream, modeling $y$, is generated by a network that contains a
loop. This is because the value of ${d^2 y / dt^2$} depends upon the
values of $y$ and ${dy / dt$} and both of these are determined by
integrating ${d^2 y / dt^2$}. The diagram we would like to encode is
shown in Figure 3.35. Write a procedure solve-2nd that takes as
arguments the constants $a$, $b$, and ${dt$} and the initial values
$y_0$ and ${dy_0$} for $y$ and ${dy / dt$} and generates the
stream of successive values of $y$.
Solution
Exercise 3.79
Generalize the solve-2nd
procedure of Exercise 3.78 so that it can be used to solve general
second-order differential equations ${d^2 y / dt^2$ =
{f(dy / dt, y)}}.
Solution
Exercise 3.80
A series RLC circuit consists of a resistor, a capacitor, and an inductor connected in series, as shown in Figure 3.36. If $R$, $L$, and $C$ are the resistance, inductance, and capacitance, then the relations between voltage ${(v)$} and current ${(i)$} for the three components are described by the equations
$$\begin{eqnarray} v_R &=& i_R R, \ v_L &=& L\,{di_L \over dt}, \ i_C &=& C\,{dv_C \over dt}, \end{eqnarray} $$
and the circuit connections dictate the relations
$$\begin{eqnarray} i_R &=& i_L = -i_C, \ v_C &=& v_L + v_R. \end{eqnarray} $$
Combining these equations shows that the state of the circuit (summarized by $v_C$, the voltage across the capacitor, and $i_L$, the current in the inductor) is described by the pair of differential equations
$$\begin{eqnarray} {dv_C \over dt} &=& -{i_L \over C}\,, \ {di_L \over dt} &=& {1 \over L}\, v_C - {R \over L}\, i_L. \end{eqnarray} $$
The signal-flow diagram representing this system of differential equations is shown in Figure 3.37.
Solution
Exercise 3.81
Exercise 3.6 discussed
generalizing the random-number generator to allow one to reset the
random-number sequence so as to produce repeatable sequences of `random''
numbers. Produce a stream formulation of this same generator that operates on
an input stream of requests togeneratea new random number or toreset` the sequence to a specified value and that produces the desired
stream of random numbers. Don't use assignment in your solution.
Solution
Exercise 3.82
Redo Exercise 3.5 on Monte
Carlo integration in terms of streams. The stream version of
estimate-integral will not have an argument telling how many trials to
perform. Instead, it will produce a stream of estimates based on successively
more trials.
